n2-Photonics

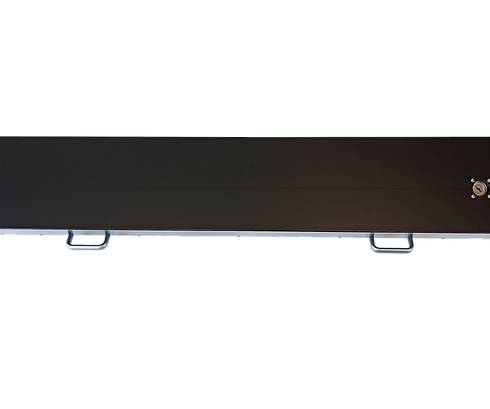

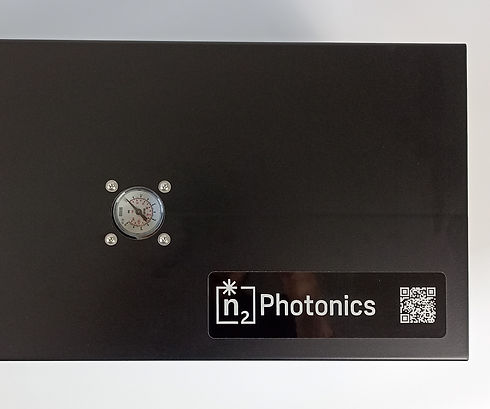

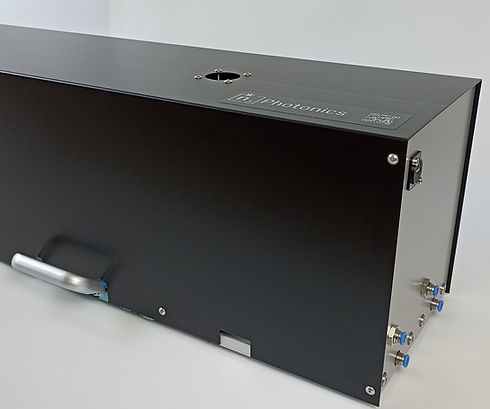

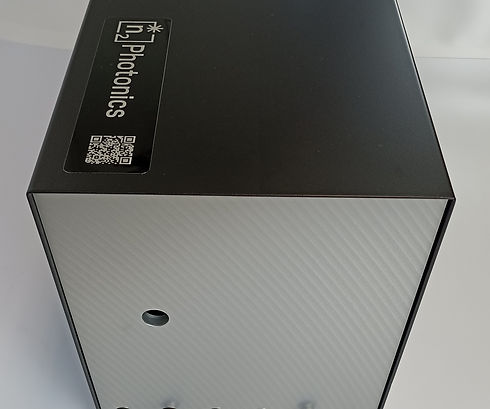

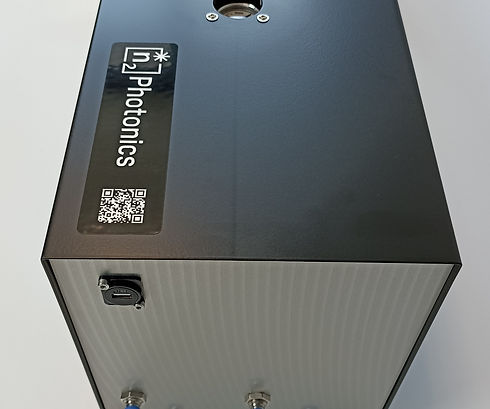

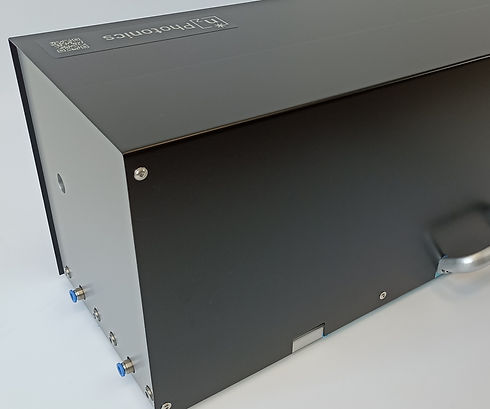

Single Stage Unit MIKS1_L

  • Compatible with any repetition rate and pulse-on-demand laser systems
  • Stable 24/7 operation
  • Simple integration with existing laser system
  • No active optical elements
  • No mechanically moving components
  • No maintenance required
  • Runs in harsh environments (e.g. dust or vibration)
PERFORMANCE​

  • Up to 10x shorter pulses (<45 fs)

  • From 500 μJ to 4 mJ input energy

  • Over 200 W average power

FEATURES

  • Over 90% transmission

  • 24/7 operation

  • No maintenance

  • Footprint:

    • 150 x 24 cm (MIKS1_L short)

    • 230 x 24 cm (MIKS1_L long)

  • Beam height:

    • 186 mm (MIKS1_L short)

    • 207 mm (MIKS1_L long)

Ready-to-go pulse compression

Input spectrum vs. output spectrum

Input spectrum vs. output spectrum

Output beam profile

Show Cases

MIKS1_L_HP (45 fs)
@ Carbide (2 mJ, 80 W)
(Light Conversion)

MIKS1_L
@ A2000
(Amphos)

MIKS1_L
@ Pharos
(Light Conversion)

MIKS1_X (30 fs)
@ Pharos (4 mJ, 20 W)
(Light Conversion)
